T-300 Ultrasonic Cutting Machine
Equipment image
Equipment demonstration video
Equipment video
Video content to be added
The T-300 features automatic frequency tracking and a TC4 titanium alloy blade with a non-stick coating. It can cut rectangular, triangular and circular shapes.
Ultrasonic frequency20 kHz
Rated power2000 W
Cutting area600 × 600 mm
Technical specifications
| Model | T-300 |
|---|---|
| Ultrasonic frequency | 20 kHz |
| Rated power | 2000 W |
| Cutting area | 600 × 600 mm; custom sizes available |
| Ultrasonic control | Automatic frequency tracking |
| Blade material | TC4 titanium alloy with a non-stick coating |

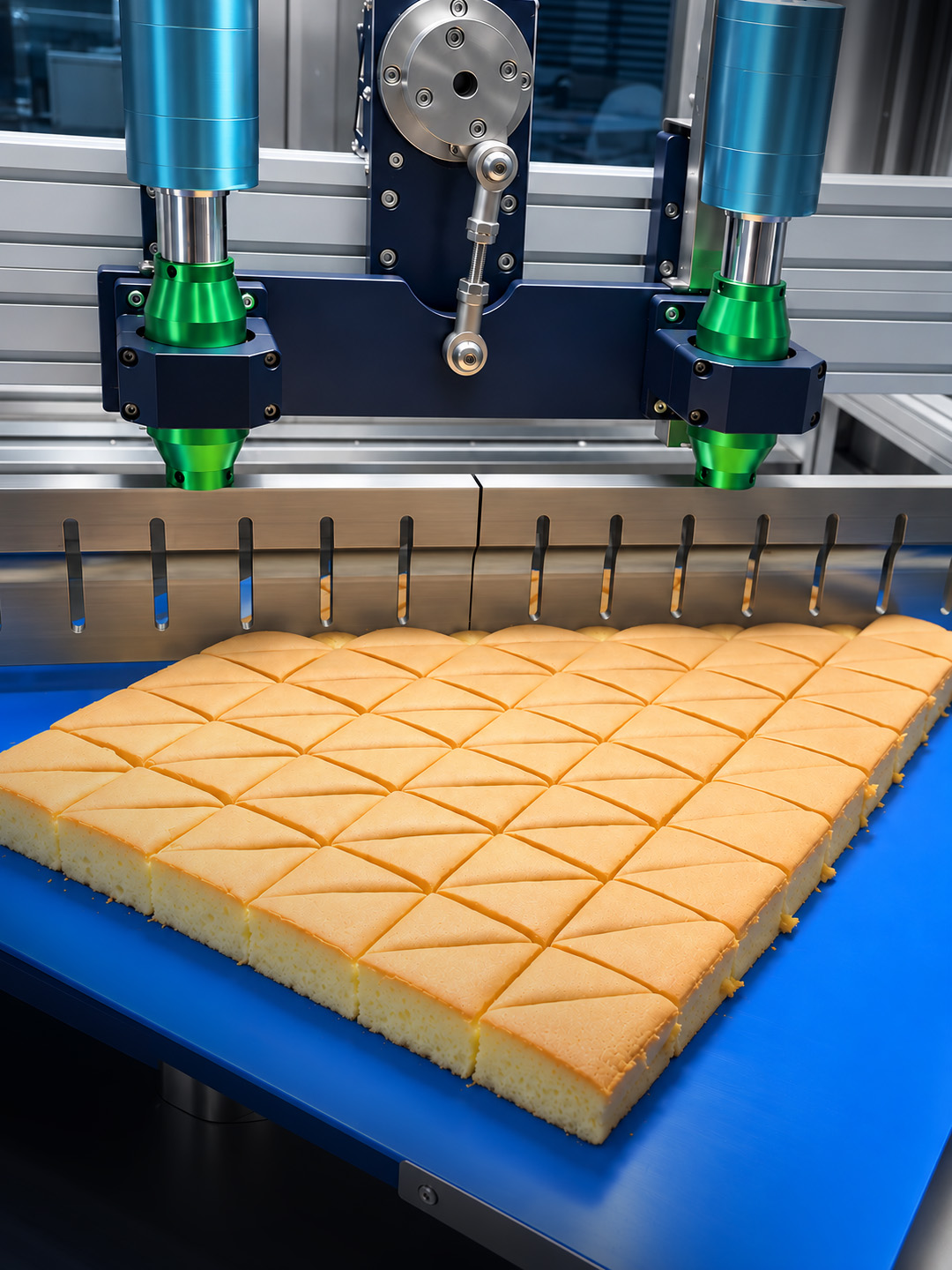

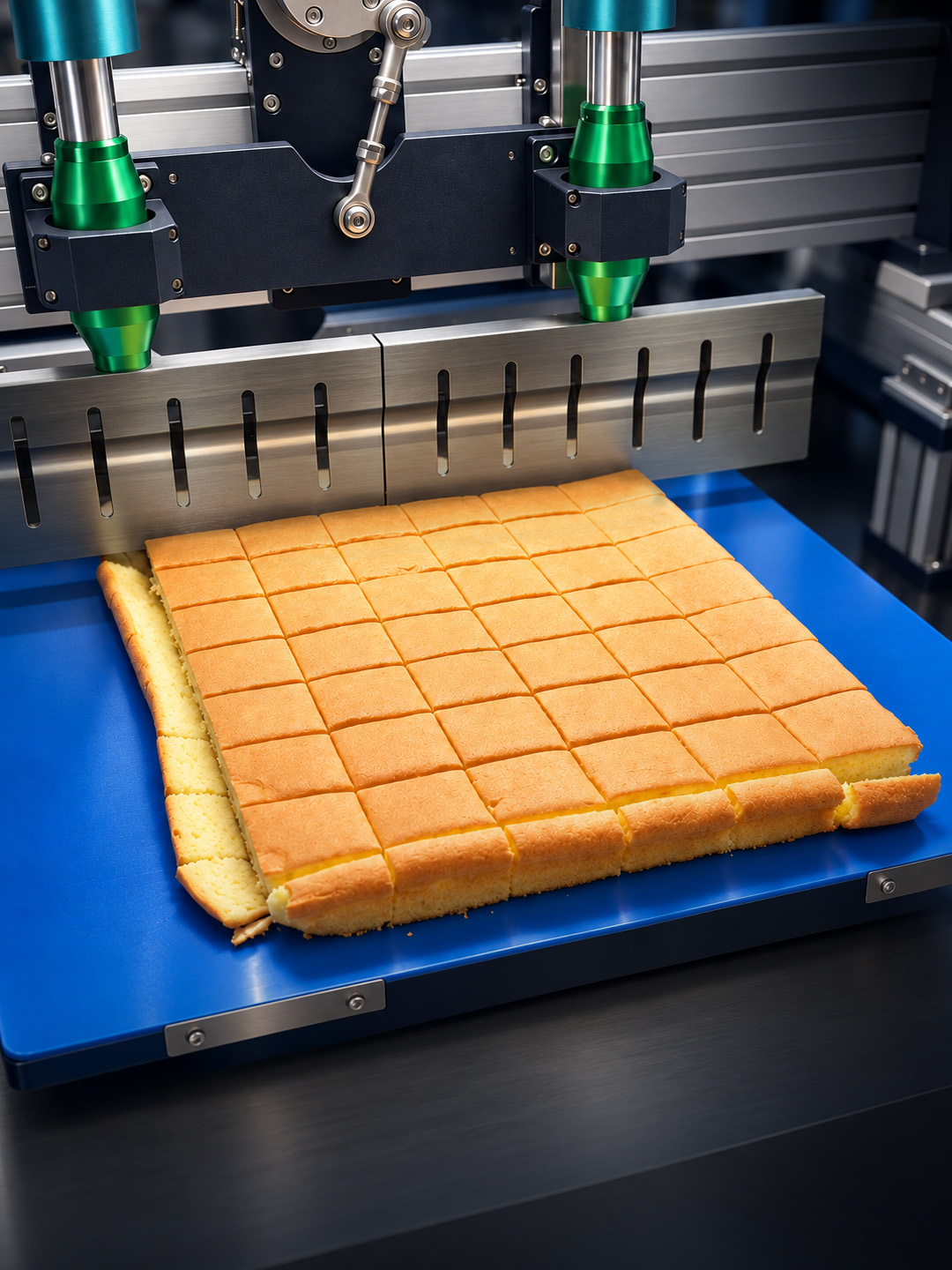

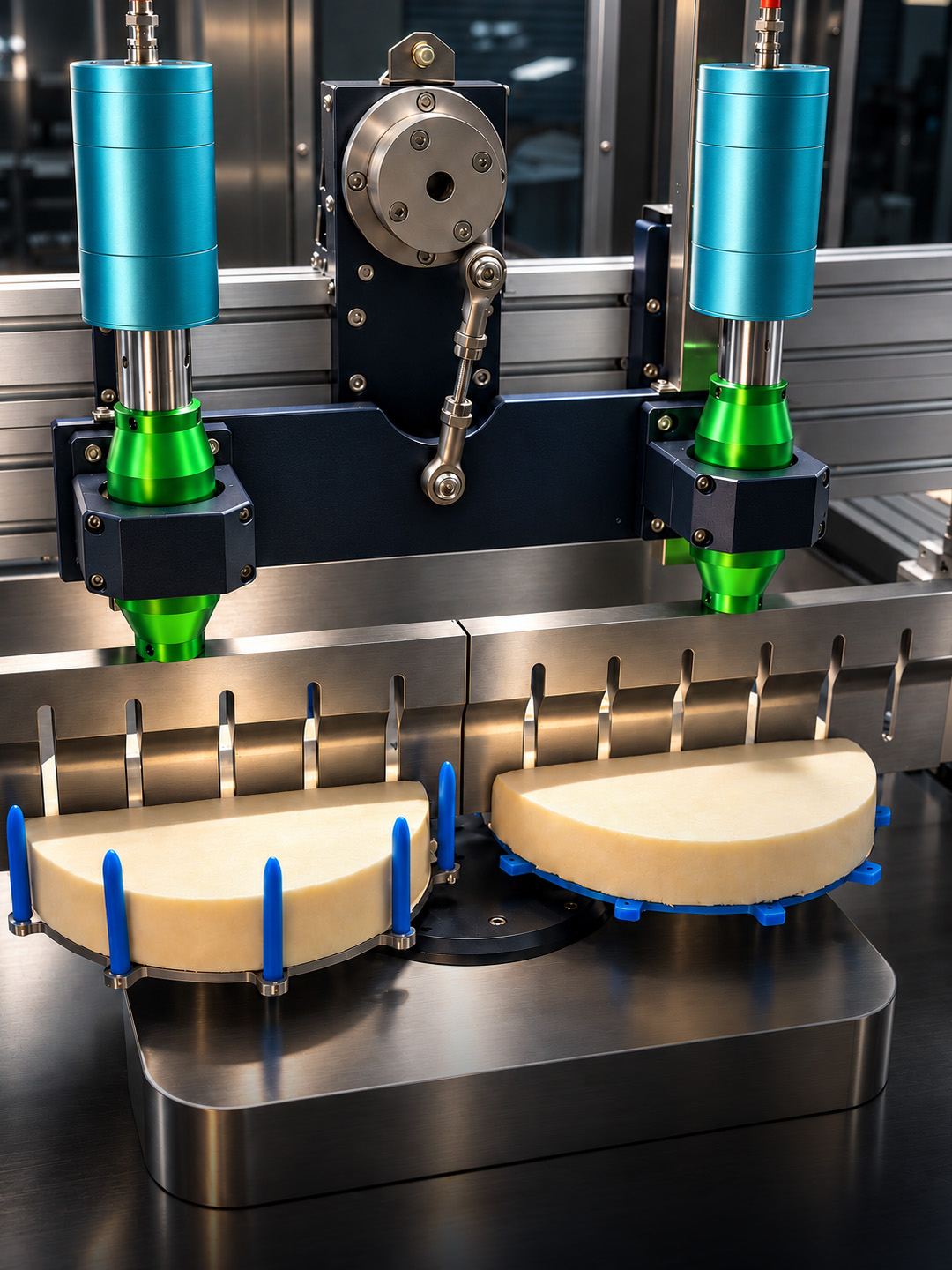

| Cutting shapes | Rectangular, triangular and circular |
| Cutting height | 60 mm; custom heights up to 120 mm available |

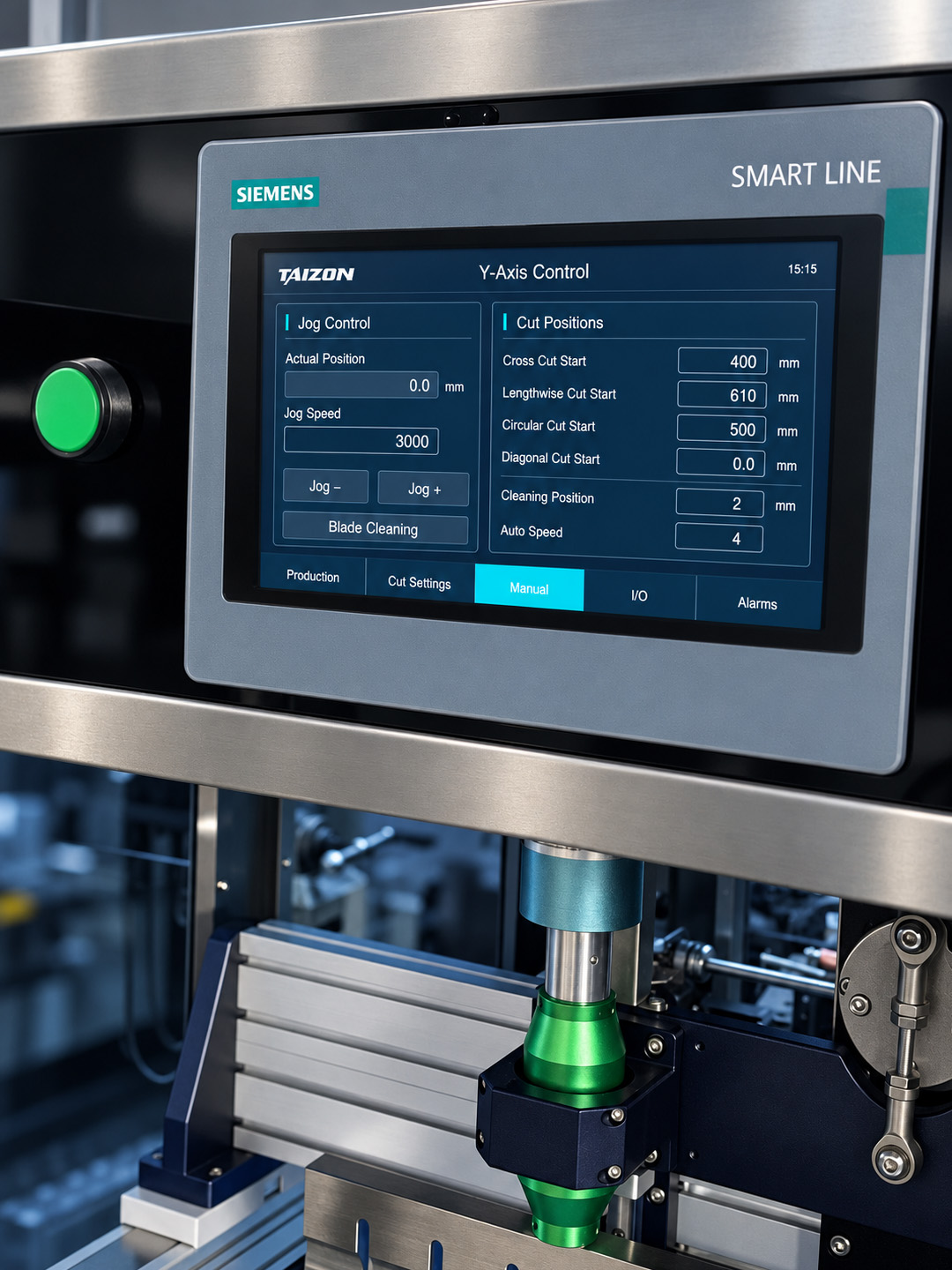

| Controls | Touchscreen and push-button controls; emergency-stop button |
| Surface finish | Finely brushed finish with anti-fingerprint treatment |
| Safety system | Safety light curtain with automatic stop and alarm |
| Frame material | 304 stainless steel |
| Air pressure | Automatic pressure monitoring; low-pressure alarm below 0.5 MPa |
| Power supply | 220 V AC, 50/60 Hz, single-phase |
| Overall dimensions | 1500 × 1200 × 1750 mm |
| Weight | 200 kg |
Custom cutting areas are available. Standard cutting height is 60 mm, with custom heights available up to 120 mm.
