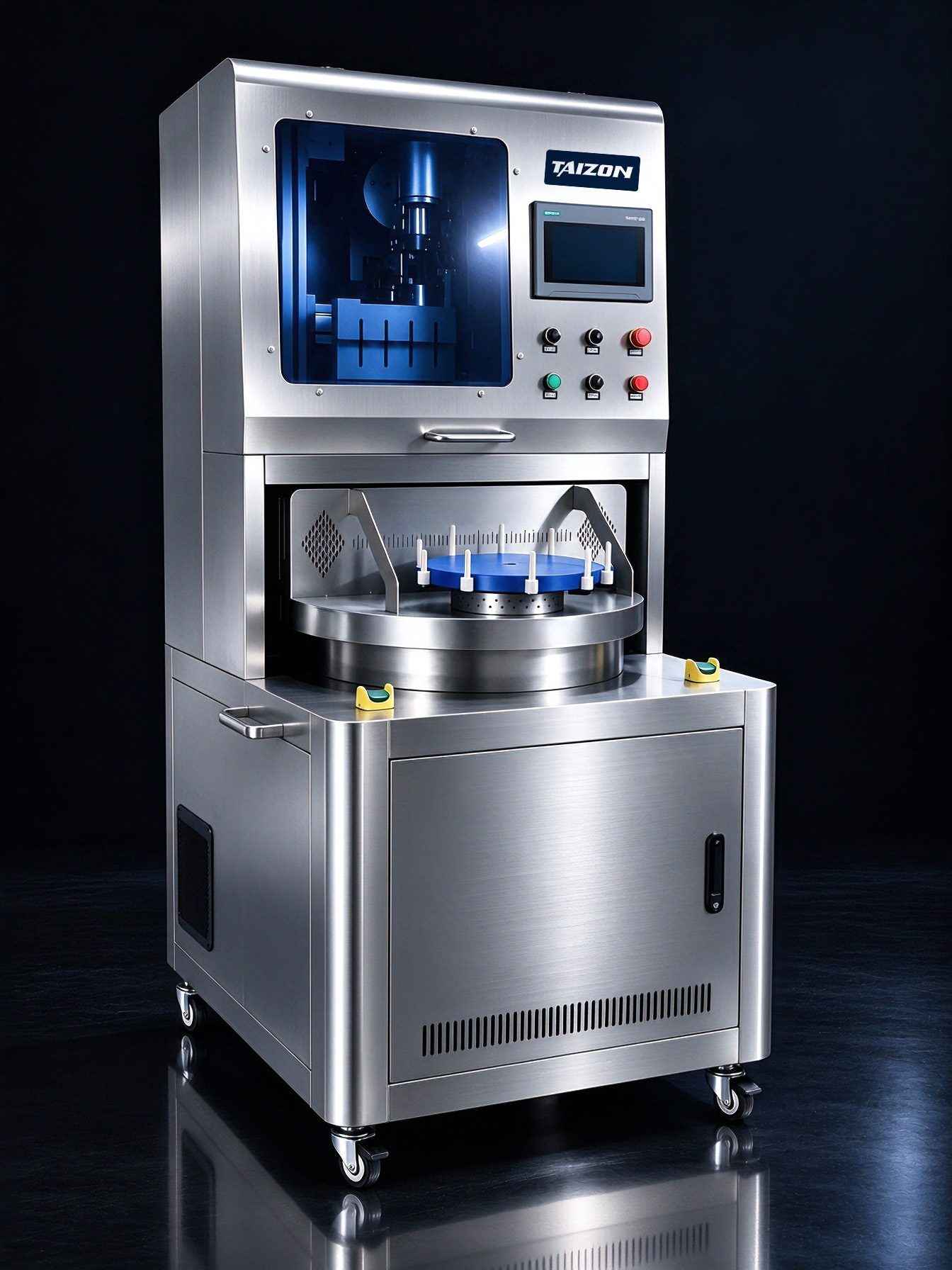

T-600 Rotary Ultrasonic Cutting Machine
Equipment image
Equipment demonstration video
Equipment video
Video content to be added
The T-600 features automatic frequency tracking and a TC4 titanium alloy blade with a non-stick coating. Maximum cutting height is 120 mm, with options for 6, 8, 10 or 12 slices.
Ultrasonic frequency20 kHz
Rated power2000 W
Maximum cutting diameter350 mm
Technical specifications
| Model | T-600 |
|---|---|
| Ultrasonic frequency | 20 kHz |
| Rated power | 2000 W |
| Maximum cutting diameter | 350 mm |
| Ultrasonic control | Automatic frequency tracking |

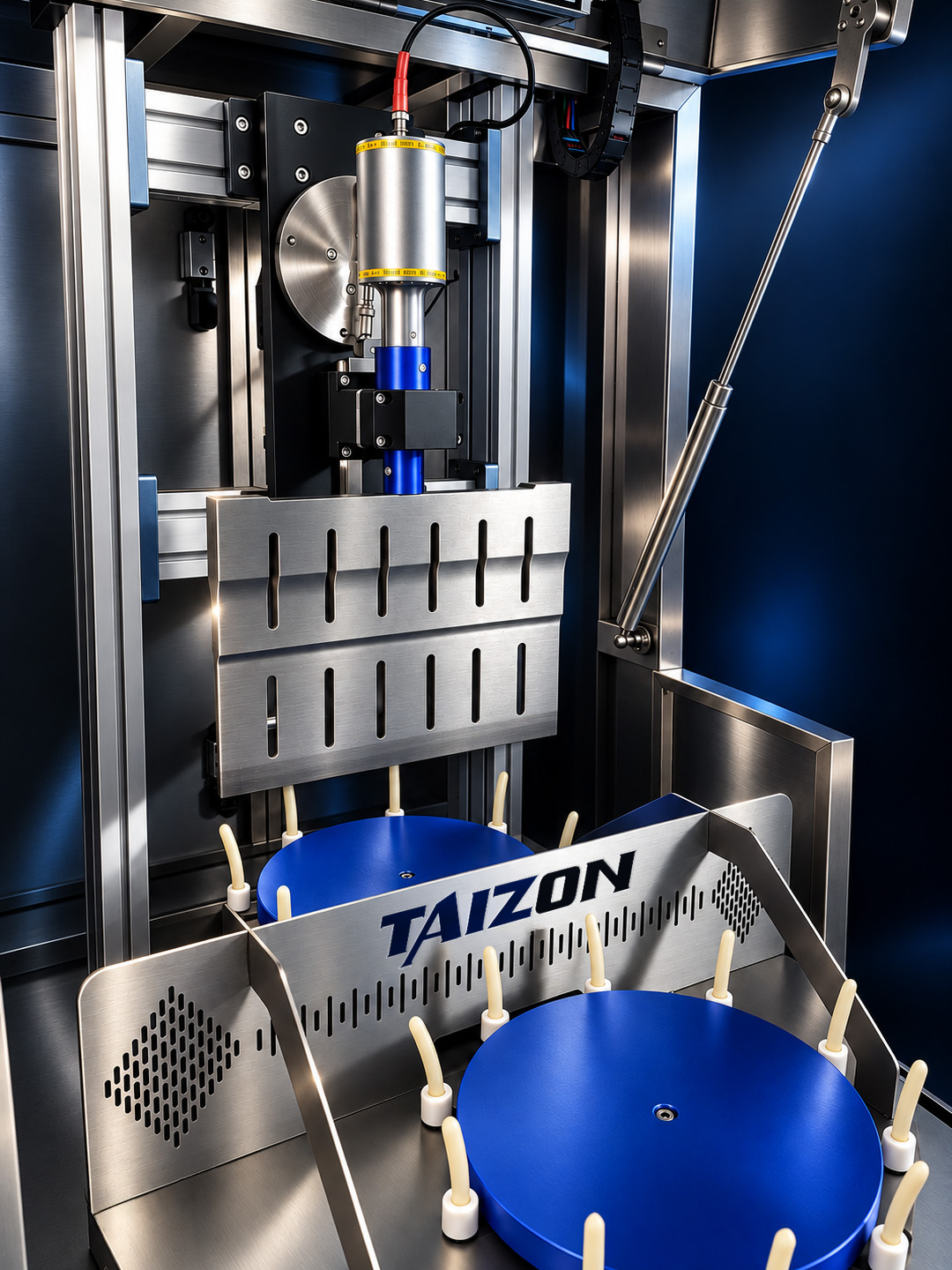

| Blade material | TC4 titanium alloy with a non-stick coating |
| Maximum cutting height | 120 mm |

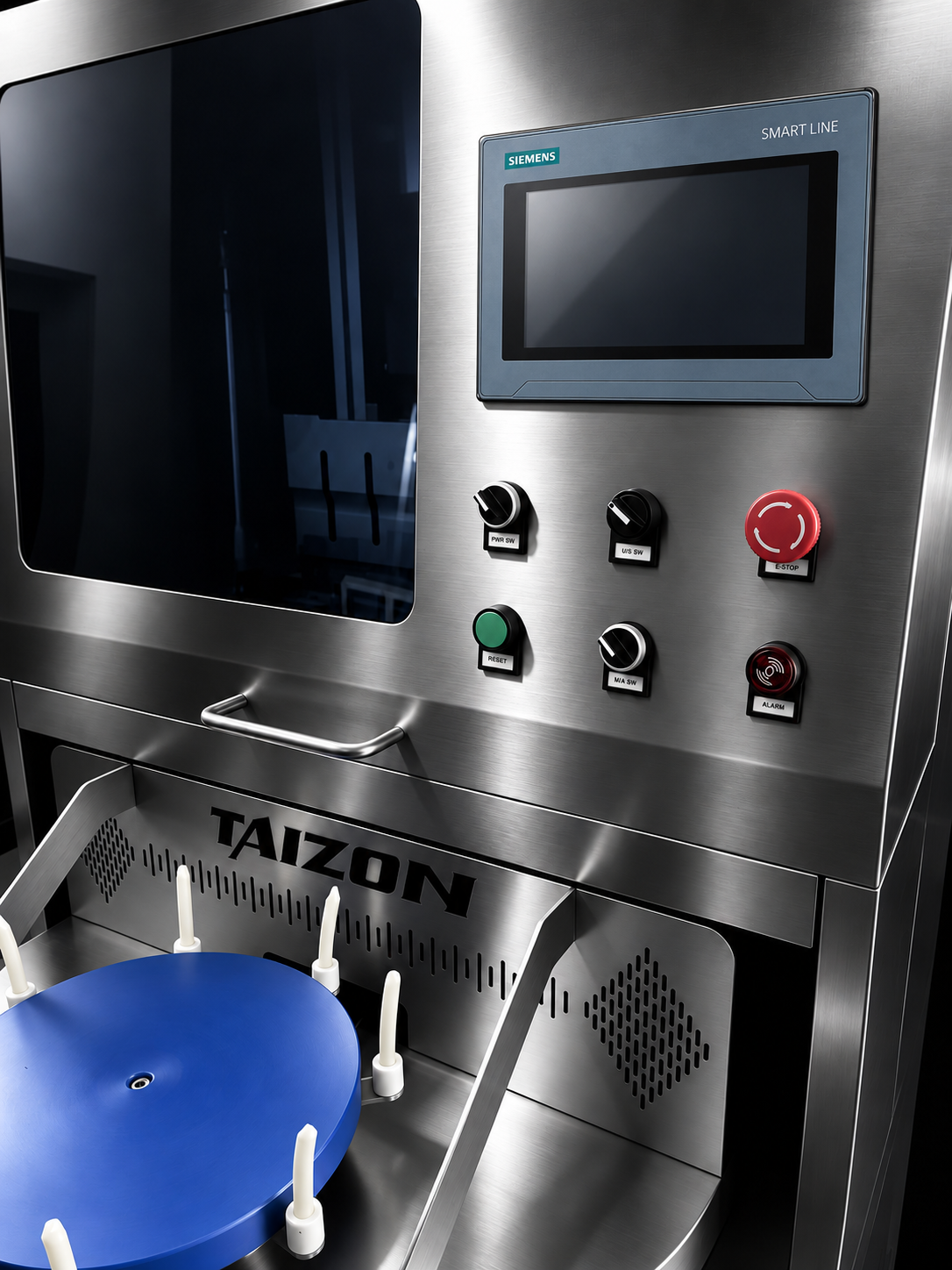

| Controls | Touchscreen and push-button controls; emergency-stop button |
| System integration | PLC Ethernet connectivity for production-line integration; EtherCAT for servo control |
| Frame material | 304 stainless steel |
| Surface finish | Finely brushed finish with anti-fingerprint treatment |
| Safety system | Safety light curtain with automatic stop and alarm |
| Power supply | 220 V AC, 50/60 Hz, single-phase |
| Overall dimensions | 700 × 800 × 1700 mm |
| Weight | 200 kg |
| Cutting specifications (diameter) | 6–12 in. |

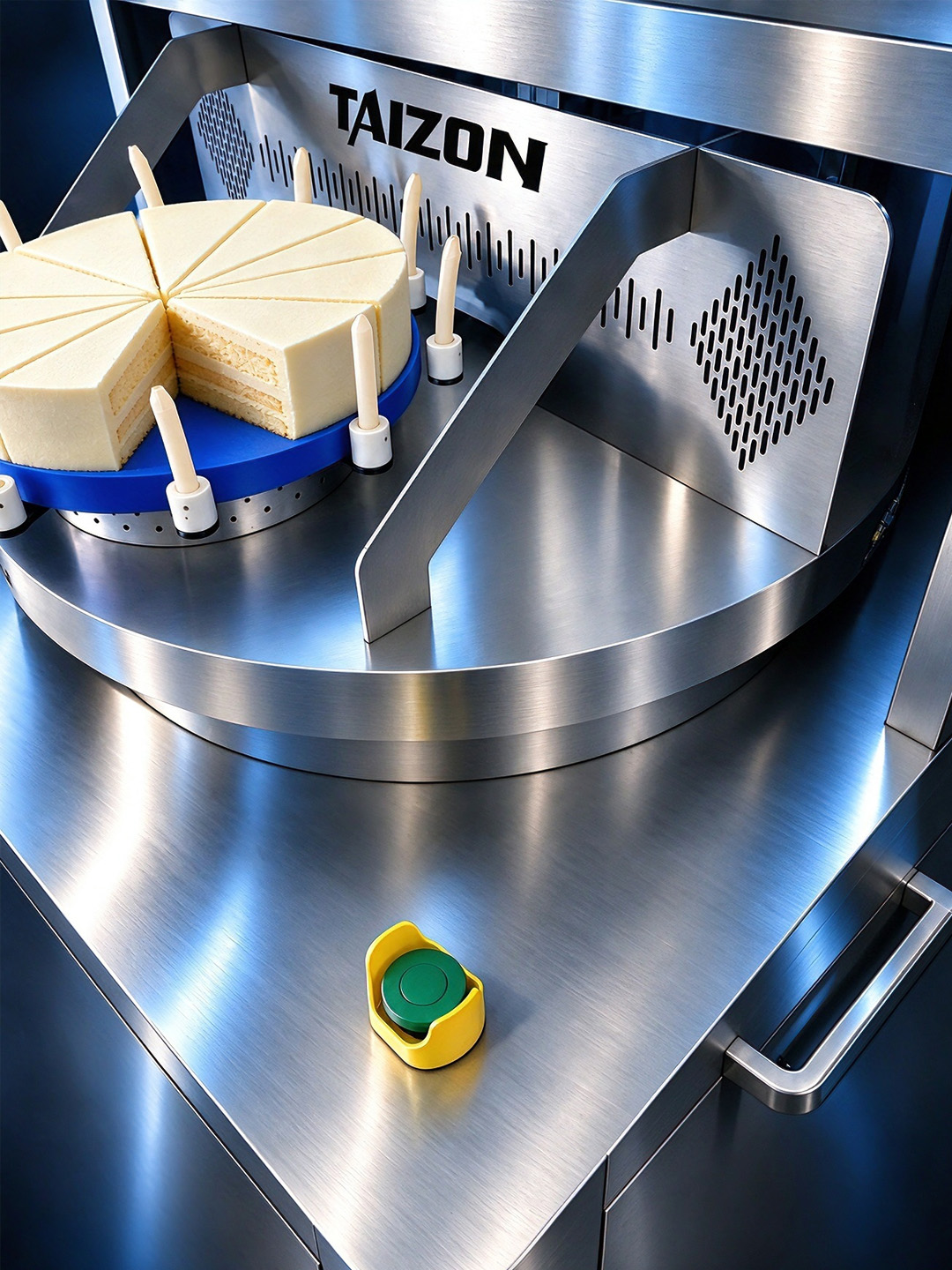

| Portion options | 6, 8, 10 or 12 slices |
The stated maximum cutting diameter is 350 mm. Cutting specifications cover diameters of 6–12 in., with 6, 8, 10 or 12 slice options.
